30m/60m/80m Line Handheld Endoscope

Product support: OEM, ODM

Product certification: CE certification, pipeline IP68 certification, host IP54 certification, high and low-temperature certification

Enterprise Qualification: Has obtained enterprise ISO9001, ISO45001, ISO14001 product quality system certification

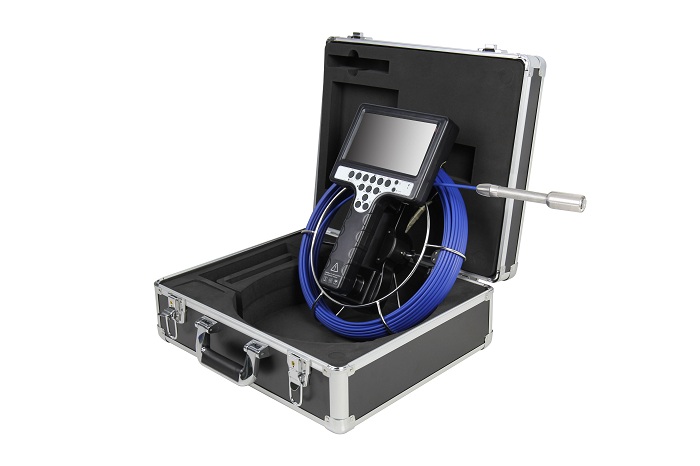

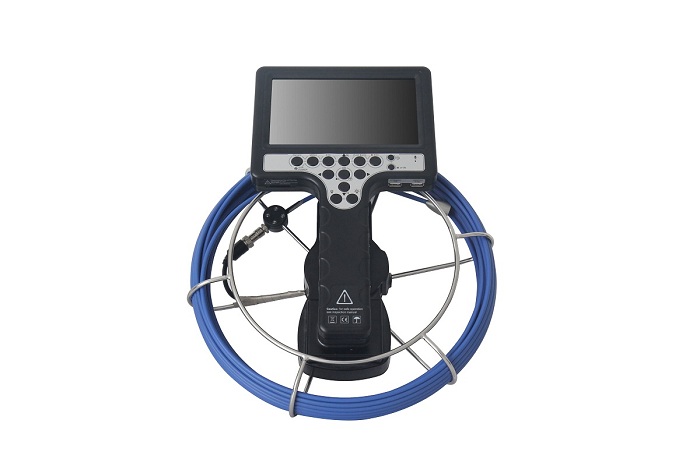

  • Product real shot

  • Product application field

  • Product parameters
Camera size φ23*134mm Camera pixels PAL:720*576 Lens Sapphire lens
Self-balancing None Cable length 30m Cable color blue
Battery capacity 4400mAh Continuous working time 7 hours Display screen 7 inch IPS display(Pixel: 1024*600)
Toolbox size L440*W395*
Toolbox color / DVR 8GB SD card AVI and JPG format
Typing / Digital zoom 8-level digital zoom Counter Length counter (meters, feet)
Audio Microphone audio recording and headphone output Multimedia One-click snapshot and video
Carton size L447*H172*W4
Gross weight / Waterproof level IP68
Certified FCC CE RoHS Operating temperature -10~50°C
RH 95%Max
Storage temperature -20~70°C
RH 95%Max
